Hydraulic Stacker

Hydraulic Stacker

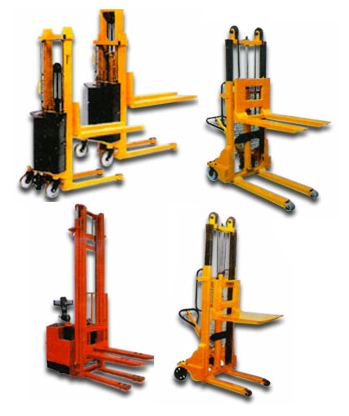

Hydraulic and Pallet stackers are designed to pick up, deliver, consolidate and stack pallets (sometimes called skids), which are flat transport structures that support goods in a stable way while they are being lifted. These are used in several industries, including:

  • 1. Retailers
  • 2. Warehouses
  • 3. Dairies
  • 4. Farms
  • 5. Shipyards
  • 6. Industrial
  • 7. Commercial

A P P L I C A T I O N :

Robust in construction.

  • Widely Used in press shops for loding and unloading of heavy die punches.
    Reliable hydraulic system.
  • Extensively used in rubber and plastic industries for loading and unloading of heavy moulds.
  • Used in stores for stacking of material,trays, boxes etc.
  • Largely used in Chemical Industries for handing and Stacking of drums and containers

(250 Kg., 500 Kg. & 1000 Kg. Capacity With 1.0, 1.5, 2.0,& 2.5 mtr.Lift.)

In case of Stacker with Forks

  • Fork Length – 1000 mm.
  • Width Across Forks – 560 mm.
  • Width of Fork – 140 mm.
PECIFICATIONS (STACKER HEIGHT)
1.0m. 1.5m. 2.0m. 2.5m.
1. L – Overall Length
a) with table 1200 1200 1200 1200
b) with fork 1600 1600 1600 1600
2. H – Min. Overall Height 1350 1600 1850 2100
3. H1- Min.Platform Height 95 95 95 95
4. H2 – Max. Platform Height 1000 1500 2000 2500
5. H3 – Max. Overall Height 1750 2250 2750 3250



*In case of Stacker with Forks*

Overall width – 800 mm.
Platform size – 625 x 625 mm.
Lift Platform per Stroke – 20mm.
Front Wheel (Dia x Width) – 200 x 50mm.
Rear wheel (Dia x Width) – 82.5 x 70mm.
All Wheel are Fitted with SealednBall Bearings.
