leading name in the industry with 22 years of industry experience. We are the Manufacturer and Supplier of Engineering Products like Telescopic Rods, Isolator Blade Alignment Hot Stick, Telescopic Trimmer, Industrial Ladders, FRP Cross Arms, Composite Insulators, FRP Pultruded Gratings, Epoxy Glass Rod, and so on

SELF SUPPORTED STEP LADDER MODEL NO. FS 1000

Extra heavy duty fiberglass step ladder for all industrial applications.

Moulded top with Recess tray : Nonconductive Structural moulded top, with slots help tools close at hand.

Inside Spreader Braces

Slip Resistant Rubber Feet : Aluminum Feet with thick rubber tread.

Full Channel fiberglass : Nonconductive.

Heavy Gusset Bracing : Two pairs of gusset support at the bottom step. All gussets are heavy duty steel.

Model Size Step
Size		 Width Approx.
Spread.		 Approx.
Wt.		 Approx.
Cube.
FS 1003 3 FT 3″ 17.5″ 23″ 6 3.23′
FS 1004 4 FT 3″ 19″ 29″ 8 4.05′
FS 1005 5 FT 3″ 21.5″ 35″ 9.5 5.17′
FS 1006 6 FT 3″ 23″ 41″ 11 6.2′
FS 1007 7 FT 3″ 24.5″ 48″ 13 7.86′
FS 1008 8 FT 3″ 26″ 54″ 15 9.5′
FS 1010 10 FT 3″ 29″ 66″ 19 12.54′
FS 1012 12 FT 3″ 32″ 78″ 24 16.10′

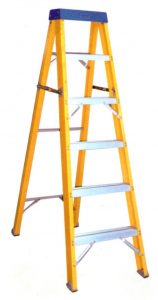

SELF SUPPORTED STEP LADDER MODEL NO. FS 2000


A heavy duty fiberglass step ladder for light and general industrial use.

Moulded top with Recess tray : Nonconductive Structural moulded top, with slots help to keep tools close at hand.

Pinch proof Spreader Braces : Heavy duty plated steel spreader braces with double rivet hivet hinge – this protect the user from pinched finger.

Slip Resistant Rubber Feet : Aluminum Feet with thick rubber tread.

Full Channel fiberglass : Nonconductive full channel rails with polyester veil.



Model Size Step
Size		 Width Approx.
Spread.		 Approx.
Wt.		 Approx.
Cube.
FS 2004 4 FT 3″ 19″ 29″ 5 4.05″
FS 2005 5 FT 3″ 21.5″ 35″ 6.5 5.17′
FS 2006 6 FT 3″ 23″ 41″ 7.5 6.2′
FS 2008 8 FT 3″ 24.5″ 48″ 15 9.5′

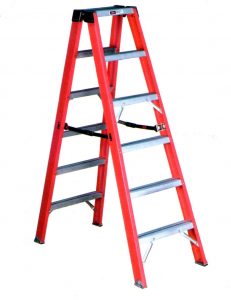

SELF SUPPORTED STEP TRESTLE LADDER MODEL NO. FM 1000

Two side mechanical step ladder is designed as trestle ladder for entry from either side. Nonconductive fiberglass rail with fully serrated aluminum steps on front & back.

Heavy Gauge Steel Hinges : Suitable for industrial application.

Heavy Gusset Bracing : Two pairs of gusset support at the bottom step. All gussets are heavy duty steel.

Slip Resistant Rubber Feet : Aluminum feel with thick rubber tread.

Inside Spreader Braces : (Through 12’)

Full Channel of Fiberglass Rail.

Model Size Step Width Approx. Spread Width Approx. Wt. Approx Cube.
FM 1004 4 FT 3″ 19″ 36″ 10.5 4.05′
FM 1005 5 FT 3″ 21.5″ 45″ 12 5.01′
FM 1006 6 FT 3″ 23″ 52″ 13 6.53′
FM 1007 7 FT 3″ 24.5″ 60″ 17 8.10′
FM 1008 8 FT 3″ 26″ 67″ 20 9.51′
FM 1010 10 FT 3″ 29″ 83″ 27 13.44′
FM 1012 12 FT 3″ 32″ 98″ 33 22.50′
FM 1014 14 FT 3″ 35″ 112″ 38 22.50′
FM 1016 16 FT 3″ 38″ 127″ 45 27.50′
FM 1018 18 FT 3″ 41″ 142″ 51 33.00”

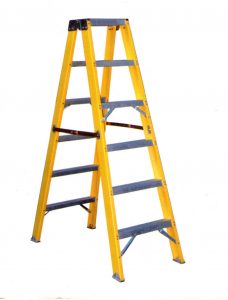

SELF SUPPORTED STEP TRESTLE LADDER MODEL NO. FM 2000

Two side mechanical step ladder is designed as trestle ladder for entry from either side. Nonconductive fiberglass rail with fully serrated aluminum steps on both the side.

Heavy Gauge Steel Hinges : Suitable for industrial application.

Pinch proof Spreader Braces : Heavy duty plated steel spreader braces with double rivet hivet hinge – this protect the user from pinched finger.

Full Channel fiberglass : Nonconductive full channel rails with polyester veil.

Slip Resistant Rubber feet : Aluminum feet with thick rubber tread.

Full Channel of Fiberglass Rail.

Model Size Step Width Bottom
Width		 Approx.
 Approx. Wt. Approx Cube.
FM 2004 4 FT 3″ 19″ 36″ 10.5 4.05′
FM 2005 5 FT 3″ 21.5″ 45″ 12 5.01′
FM 2006 6 FT 3″ 23″ 52″ 13 6.53′
FM 2007 7 FT 3″ 24.5″ 60″ 17 8.10′
FM 2008 8 FT 3″ 26″ 67″ 20 9.51′
FM 2010 10 FT 3″ 29″ 83″ 27 13.44′
FM 2012 12 FT 3″ 32″ 98″ 33 17.25′

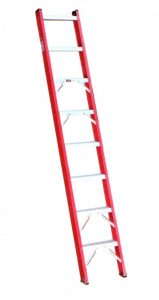

WALL SUPPORTED SHELF LADDER MODEL NO. FH 1000

Extra heavy duty 300lb rated, shelf ladder for all industrial application. Steps are level when the ladder is set at 18 Degree. Nonconductive fiberglass side rail with fully serrated aluminum step.

Round Fully serrated Tempered Rungs : Rungs are directly riveted on the side rails.

Rubber Bumper : Thick rubber of 6” length parallel to sides of ladder.

Heavy Gusset Bracing : Two pairs of gusset support at the bottom step. All gussets are heavy duty steel.

Slip Resistant Rubber Feet : Aluminum feet with thick rubber tread.

Model Total
Length		 Step
Size		 Width Approx Wt. Approx.
cube.
FH 1004 4 FT 3″ 15″ 4.0 1.25″
FH 1005 5 FT 3″ 15″ 5.0 1.56″
FH 1006 6 FT 3″ 15″ 6.0 1.87″
FH 1007 7 FT 3″ 15″ 8.0 2.18″
FH 1008 8 FT 3″ 15″ 8.5 2.50″
FH 1010 10 FT 3″ 15″ 10.5 3.12″
FH 1012 12 FT 3″ 15″ 12.5 4.95″
FH 1014 14 FT 3″ 17″ 15.5 6.54″
FH 1016 16 FT 3″ 17″ 18 7.50″
FH 1018 18 FT 3″ 17″ 20 8.43″
FH 1020 20 FT 3″ 17″ 22 9.37″

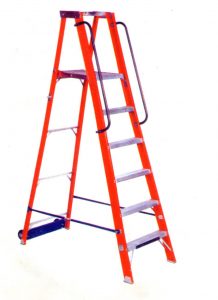

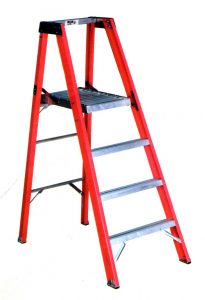

SELF SUPPORTED PLATFORM LADDER MODEL NO. FP 1000

Fiberglass platform ladder designed for prolong standing at one height. Nonconductive fiberglass rail with fully serrated aluminium step & platform.

Slip Resistant Platform : Large Fully serrated 15″ wide 20″ deep, it locks ladder.

Heavy Gusset Bracing : Two pairs of gusset support at the bottom step.

Slip Resistant Rubber Feet : Aluminum feel with thick rubber tread.

Top Rail Guard : to serve as a railing for working form platform.

Full Channel Fiberglass Channel : Nonconductive.



Model Size Step Width Approx. Spread Width Approx. Wt. Approx Cube.
FP 1003 3 FT 3″ 30″ 22″ 10 3.65′
FP 1004 4 FT 3″ 38″ 23.5″ 12 5.06′
FP 1005 5 FT 3″ 43″ 25″ 14 6.56′
FP 1006 6 FT 3″ 50″ 26.5″ 16 8.15′
FP 1008 8 FT 3″ 62″ 29.5″ 22 11.62′
FP 1010 10 FT 3″ 75″ 32″ 29 15.31′
FP 1012 12 FT 3″ 88″ 35″ 34 19.50′

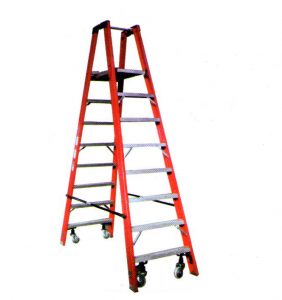

SELF SUPPORTED PLATFORM LADDER WITH HAND RAIL & CASTOR MODEL NO. FP 1100

Fiberglass platform ladder designed for prolong standing at one height. Nonconductive fiberglass rail with fully serrated aluminium step & platform.

Slip Resistant Platform : Large Fully serrated 15″ wide 20″ deep, it locks ladder.

Heavy Gusset Bracing : Two pairs of gusset support at the bottom step. All gussets are heavy duty steel.

Slip Resistant Rubber Feet : Aluminum feel with thick rubber tread.

Top Rail Guard : to serve as a railing for working form platform.

Full Channel of Fiberglass Rail.

Model size step width Approx.
Spread		 Width Approx.
Wt.		 Approx.
Cube
FP 1103 3 FT 3″ 30″ 22″ 10 3.65′
FP 1104 4 FT 3″ 38″ 23.5″ 12 5.06′
FP 1105 5 FT 3″ 43″ 25″ 15 6.56′
FP 1106 6 FT 3″ 50″ 26.5″ 16 8.15′
FP 1108 8 FT 3″ 62″ 29.5″ 22 11.62′
FP 1110 10 FT 3″ 75″ 32″ 29 15.31′
FP 1112 12 FT 3″ 88″ 35″ 34 19.50′

Note : 6, 8, 10 & 12 Models are provided with insulated handrail and 3, 4 & 5 Models are provided with castor unit only

SELF SUPPORTED TRESTLE LADDER WITH FOLDABLE PLATFORM MODEL NO. FP 3000

FP 3000 SELF SUPPOERTED TRESTLE LADDER WITH FOLDABLE PLATFORM
300 LBS

DUTY RATING
IA

 This platform ladder is self supported, design to be use by either side. The ladder has a castor for easy movement as well as platform is collapsible. SIZE 6FT
To 12FT
HEIGHT

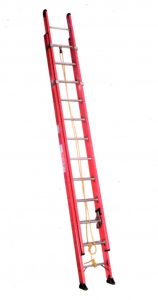

WALL SUPPORTED EXTENSION LADDER MODEL NO. FE 2000

Heavy Duty channel extention ladder for all industrial application. Full channel nonconductive side rails. Set ladde at the proder working angle.

Round fully serrated Tempered Rungs : Rungs are directly riveted on the side rails.

Easy one handed locking system.

Swivel Safety Shoes : Aluminum Shoe with thick rubber tread.

Full Channel fiberglass Channel : Nonconductive..





Model Total
Length		 Length
of
section		 Exten.
Height		 Approx. Wt. Approx.
Cube.
FE 2616 16′ 8′ 13′ 21 7.8′
FE 2620 20′ 10′ 17′ 23 9.54′
FE 2624 24′ 12′ 21′ 28 11.34′
FE 2628 28′ 14′ 25′ 32 13.23′
FE 2632 32′ 16′ 29′ 36 15.12′
FE 2636 36′ 18′ 32′ 40 17.01′
FE 2640 40′ 20′ 35′ 45 18.90′



Size Rail Depth Total Ht. Approx inside Width Approx Outside Width
Base Fly Base Fly
16-40′ 4″ 6.5″ 15″ 14″ 18″ 16.5″

WALL SUPPORTED EXTENSION LADDER MODEL NO. FE 3000

Heavy Duty channel extention ladder for all industrial application. Full channel nonconductive side rails. Set ladde at the proder working angle.
Round fully serrated Tempered Rungs : Rungs are directly riveted on the side rails.

Easy locking system : Rope operated.

Safety Shoe : Thick Rubber Shoe.

Full Channel fiberglass Channel : Nonconductive..







Model Total
Length		 Length
of
section		 Exten.
Height		 Approx. Wt. Approx.
Cube..
FE 3216 16′ 8′ 13′ 23 7.58′
FE 3220 20′ 10′ 17′ 23 9.54′
FE 3224 24′ 12′ 21′ 28 11.34′
FE 3228 28′ 14′ 25′ 32 13.23′
FE 3232 32′ 16′ 29′ 36 15.12′
FE 3236 36′ 18′ 32′ 40 17.01′
FE 3240 40 20′ 35′ 45 18.90′



Size Rail
Depth		 Total
Ht.		 Approx inside Width Approx Outside Width
Base Fly Base Fly
16-40′ 4″ 6.5″ 15″ 14″ 18″ 16.5″

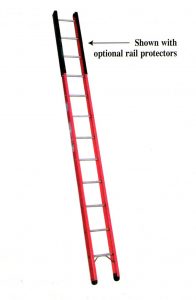

LADDER FOR MANHOLE APPLICATION MODEL NO. FE 8400

Description :

A narrow fiberglass straight ladder design for use in manholes. Full Channel nonconductive side rails. Width of all sizes are 14”.

Round fully serrated Tempered Rungs.

Optional Rail Protector : Can be ordered with durable rail guards to protect the side rail from metallic rim manhole.

Safety shoes : Aluminum shoe with thick rubber tread.

Full Channel fiberglass Channel : Nonconductive



Model Total Length Approx. Wt. Approx. Wt.
FE 8408 8′ 9 2.5′
FE 8410 10′ 11 3.48′
FE 8412 12′ 13 4.2′
FE 8414 14′ 16 5.0′
FE 8416 16′ 17 5.6′
FE 8418 18′ 20 6.5′
FD 8420 20′ 21 7.0′



Size Rail
Depth		 Total
Ht.		 Approx Outside
Width
8 – 20′ 3-1/4′ 11.5/8″ 14″

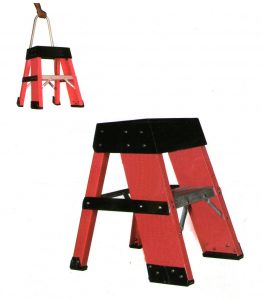

INDUSTRIAL STEP STAND MODEL NO. FY 8000

These multipurpose, heavy duty industrial domestic step stands are available as light weight, non conductive fiberglass step stand.

Large Moulded Top : Nonconductive moulded top. 14” wide & 10” deep.

Heavy gauge Bracing : Two pairs of gusset support at the bottom step. All gussets are heavy duty steel.

Ship Resistant Rubber Feet : Aluminum feet with think rubber tread.

Large Aluminum fully Serrated Steps.



Model Size Top width Approx.
Spread		 width Approx.
Wt.		 Approx.
Cube
FY 8001 1 FT 14 x 10″ 15″ 15″ 4 1.56′
FY 8002 2 FT 14 x 10″ 21″ 18″ 8 5.25′
FY 8003 3 FT 14 x 10″ 27″ 20″ 11 11.25′
FY 8004 4 FT 14 x 10″ 33″ 22″ 14 20.16′

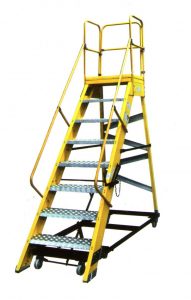

MOBILE PLATFORM FOR MAINTENANCE (SINGLE) MODEL NO. FPM 1000

These mobile maintenance platform is specially designed for working around electricity, its non conductive material & heavy duty construction provides safety on jobs where electrical lines are present.

  • Heavy Duty anti skid step assembly.
  • Non conductive Platform Assembly.
  • Heavy Duty Base Assembly.
  • Non Conductive handrail & Guard Rail.Safety Lock Feature with Handle for Wheel Engagement.
  • Safety Yellow Colour.

FPM 1000 Series Single Person 24L X 17W 300LBS Capacity

Model Size HT to Step Max Lenght Max Width Max HT Width Side WY in Kg. Approx Cube
FPM1005 5 4’ 63” 32” 7’.6” 79 18’
FPM1006 6 4’.9” 71” 32” 8’.3” 86 21’
FPM1007 7 5’.7” 80” 32” 9’.1” 106 25’
FPM1008 8 6’.4” 89” 32” 9’.10” 117 28’
FPM1009 9 7’.2” 97” 32” 10’.8” 127 31’
FPM1010 10 7’.11” 106” 32” 11’.5” 184 60’
FPM1011 11 8’.9” 114” 36” 12’.3” 193 66’
FPM1012 12 9’.6” 123” 36” 13’ 200 71’
FPM1013 13 18’.4” 131” 39” 13’.10” 233 77’
FPM1014 14 11’.1.5” 140” 39” 14’.10” 241 83’
FPM1015 15 11’.11” 148” 39” 15’.5” 248 89’

FPM 1000 Series Single Person 24L X 17W 300LBS Capacity

Model Size HT to Step Max Lenght Max Width Max HT Width Side WY in Kg. Approx Cube
FPM1105 5 4’ 80″ 32” 7′.6″ 88 25′
FPM1106 6 4’.9” 92′ 32” 8’.3” 95 28’
FPM1107 7 5’.7” 97″ 32” 9’.1” 115 31′
FPM1108 8 6’.4” 106″ 32” 9′.10″ 126 60′
FPM1109 9 7’.2” 114″ 32” 10’.8” 136 66′
FPM1110 10 7’.11” 123″ 32” 11’.5” 197 71′
FPM1111 11 8’.9” 131″ 36″ 12’.3” 207 77′
FPM1112 12 9’.6” 140″ 36” 13’ 214 83′
FPM1113 13 10′.4″ 148″ 39” 13’.10” 246 89′
FPM1114 14 11’.1.5” 157″ 39” 14’.10” 255 95′
FPM1115 15 11’.11” 166″ 39” 15’.5” 261 101′

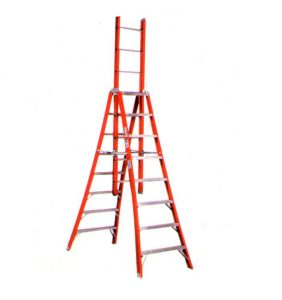

SELF SUPPOERTED STEP TREP TRESTLE LADDER WITH EXTENTION LADDER MODEL NO. FM 4000

FM 4000 SELF SUPPOERTED STEP TREP TRESTLE LADDER WITH EXTENTION LADDER
300 LBS

DUTY RATING
IA

 This heavy duty extension trestle type ladder for self supported extension requirement. As well as use with scaffold planks. SIZE FT
To 12FT
HEIGHT
